XL Specialized Trailers

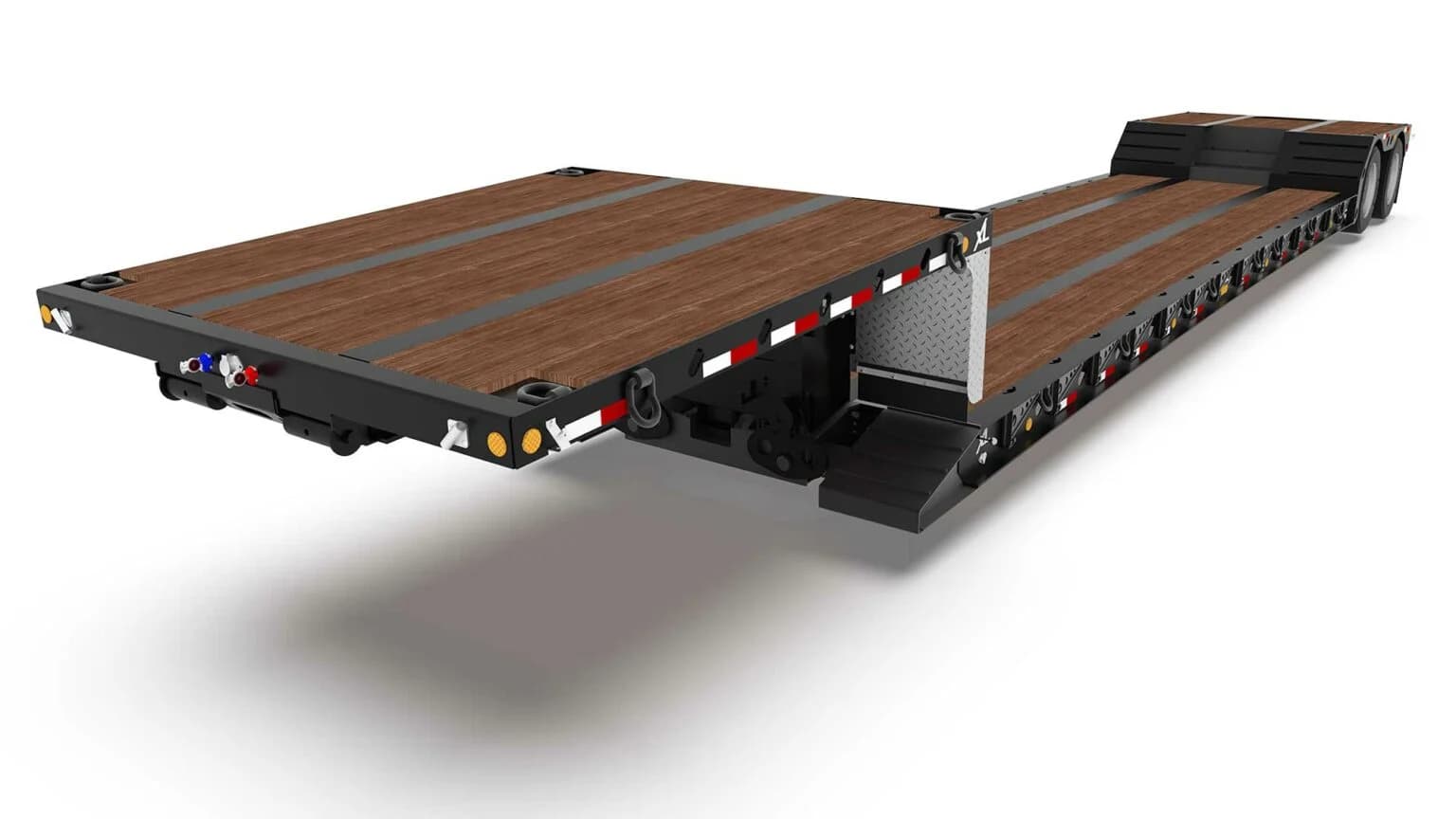

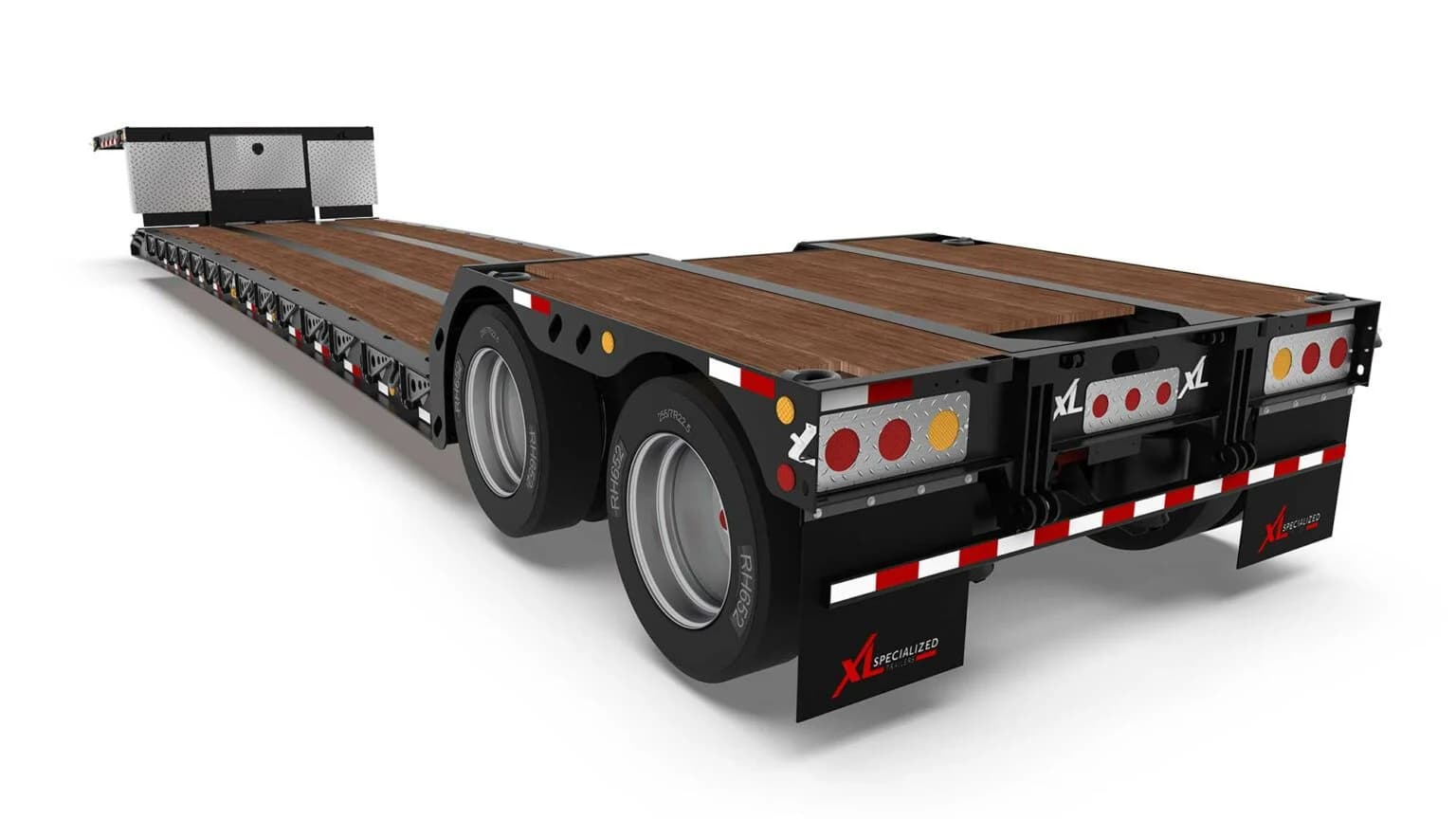

XL Mechanical Full-width Gooseneck
Detachable Gooseneck
- Capacity
- 30 ton
- Axles
- 2
- Deck length
- 29 ft
- Deck height
- 18 in
Specifications
Capacity
- Overall Capacity
- 60,000 lbs lbs
- Concentrated Capacity
- 50,000 lbs in 16' lbs
Dimensions
- Gooseneck Length
- 10' in
- Standard Main Deck Length
- 29' in
- Deck Height
- 18" in
- Ground Clearance
- 6" in
Running Gear
- Standard Axles
- 2
- Wheel Area
- Wood-covered
General
- Standard OAL
- 48'
- Outrigger Style
- Swingouts
- ISO 9001
- 2015 Registered
About lowboy trailers
A lowboy drops the deck between the gooseneck and the rear axles, putting the load 18 to 24 inches off the ground. That low center of gravity is what lets tall equipment — excavators, dozers, cranes, drill rigs — travel under bridges without an over-height permit. Fixed-neck lowboys load from the rear or side; detachable-neck models let the machine drive straight on from the front. Typical capacities run 35 to 60 tons, with multi-axle configurations reaching well beyond that.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
