XL Specialized Trailers

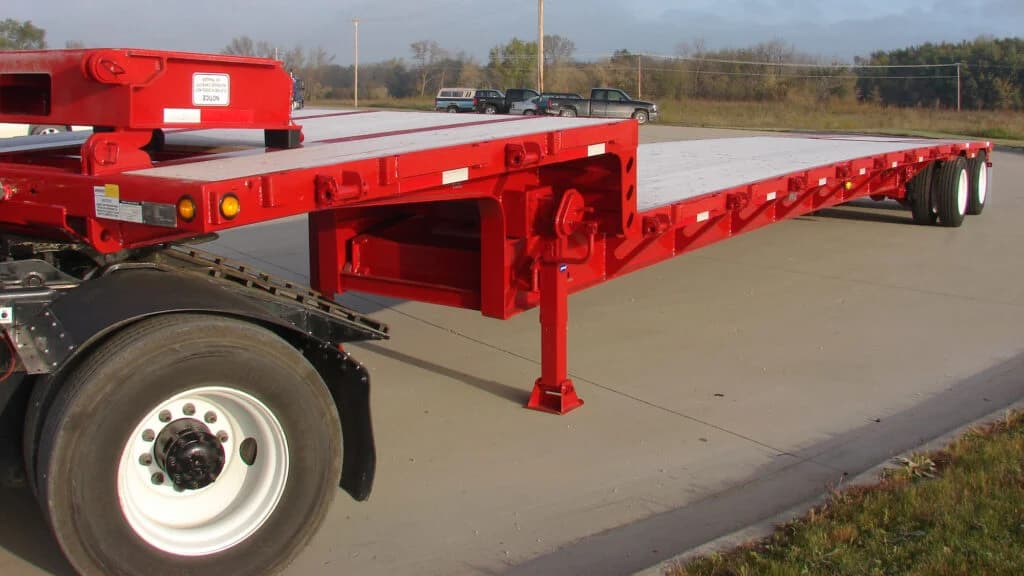

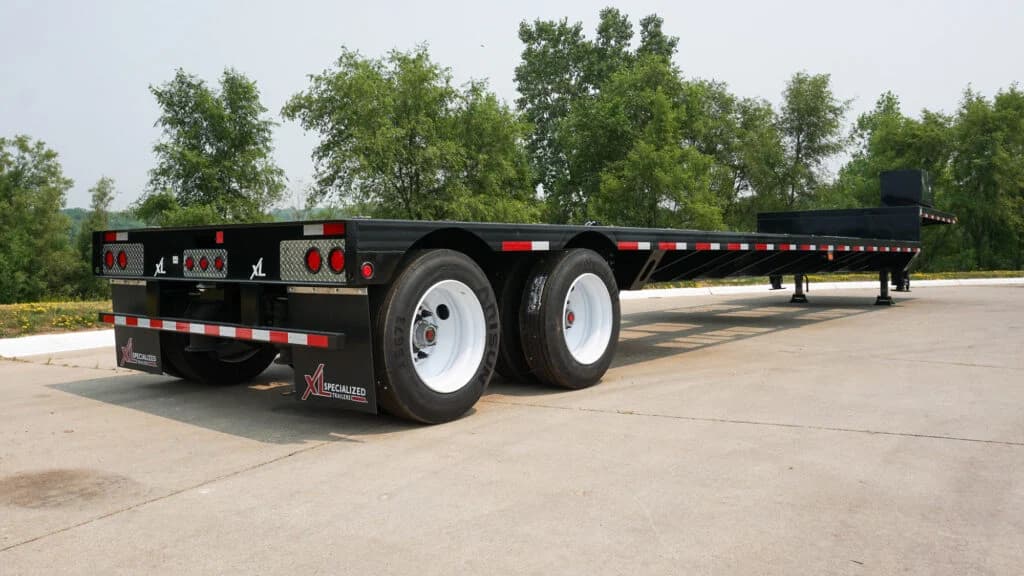

XL Specialized Step Deck
Detachable Gooseneck
- Capacity
- 35 ton
- Axles
- 2
- Deck length
- 38 ft
- Deck height
- 39 in
Specifications
General
- Model
- XL 70 SD
- Standard OAL
- 48'
- ISO 9001
- 2015 Registered
Capacity
- Overall Capacity
- 70,000 lbs lbs
- Concentrated Capacity
- 50,000 lbs in 10' closed lbs
Dimensions
- Gooseneck Length
- 10' in
- Standard Main Deck Length
- 38' in
- Loaded Deck Heightof Main Deck
- 39 1/2" in
Running Gear
- Standard Axles
- 2
About step deck trailers
A step deck (or drop deck) has a short upper deck over the fifth wheel and a longer lower deck stepped down behind it. The lower deck sits around 36 to 40 inches high — roughly two feet lower than a flatbed — so it carries freight up to about 10 feet tall without an over-height permit. Common lengths are 48 and 53 feet, with ramps optional for wheeled equipment.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
